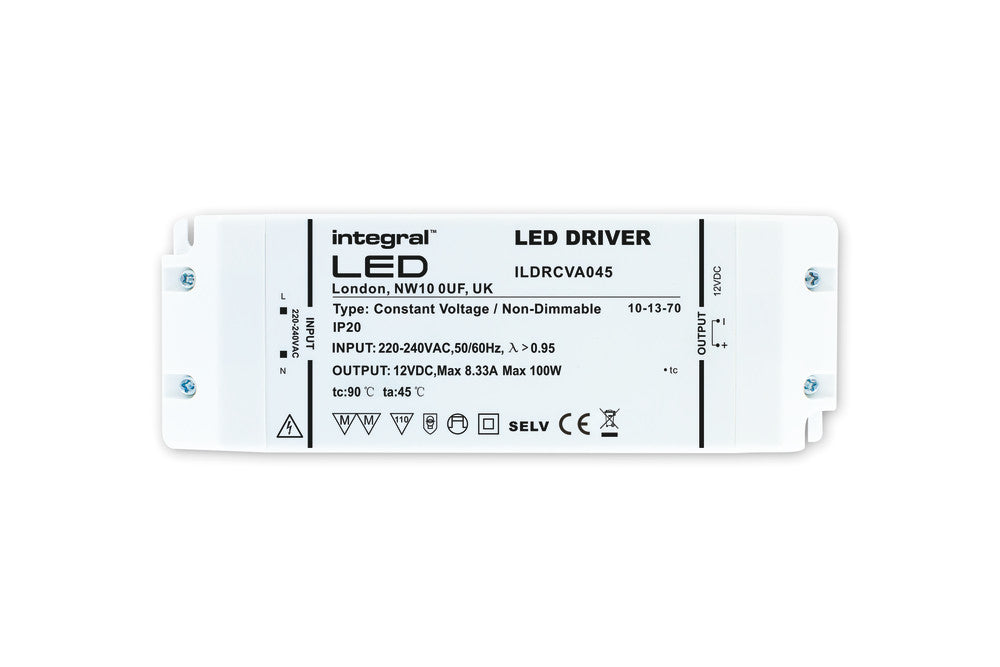

CONSTANT VOLTAGE DRIVER 100W 12VDC IP20 NON-DIMM 200-240V INPUT INTEGRAL
The Integral 100W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 12V constant voltage and up to 8.33A of output current for a 100W maximum output power. Integral LED drivers deliver high reliability and efficiency >= 85% and are fully compatible with 12V constant voltage LED lighting systems. The LED driver features an ultra slim, IP20 rated casing that helps to provide an easy installation and smart finish, ideal for indoor use.
Input Voltage: 220-240VACOutput Power: 100WOutput: 12VDC Constant VoltageShort Circuit / Over Load / Over Heat Protection
Barcode :5055788238706
Category :Drivers
Features :
Market Segment :Commercial indoor, Residential indoor
Product Body Finish :
Product Type :Constant Voltage
Range Name :Non-Dimmable
Warranty (Years) :3
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :
Beam Angle (Range) :
Colour Rendering Index (CRI) :
Colour Temperature :
Colour Temperature Name :
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :
LED Type :
Lifetime (hours) :
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :1 to 100
Luminous efficacy (lm/W) :
Luminous Flux in Lumens (lm) :
Sensor / Overide :
Switching Cycles:
Amperage (mA) :
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :
Electric Current :
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :0.7
Input Voltage (V) :220-240
Insulation Guard :
Output Current (mA) :8330
Output Voltage (V) :
Power Consumption (Range) :70 to 100 100 to 150
Power Consumption (w) :100
Power Consumption per meter (W/m) :
Protection Function :Short Circuit Protection, Overload Protection, Overheat Protection
True Wattage Eq (W) :
Voltage Range (v) :
Wattage equivalent (W) :
Watts per metre :
EN :EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
LVD Certified:Yes
New Energy Rating :
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP20
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :45
CE RoHS :Yes
Package Length (mm) :190
Package Width (mm) :72
Package Depth (mm) :37
Package Weight (g) :440
