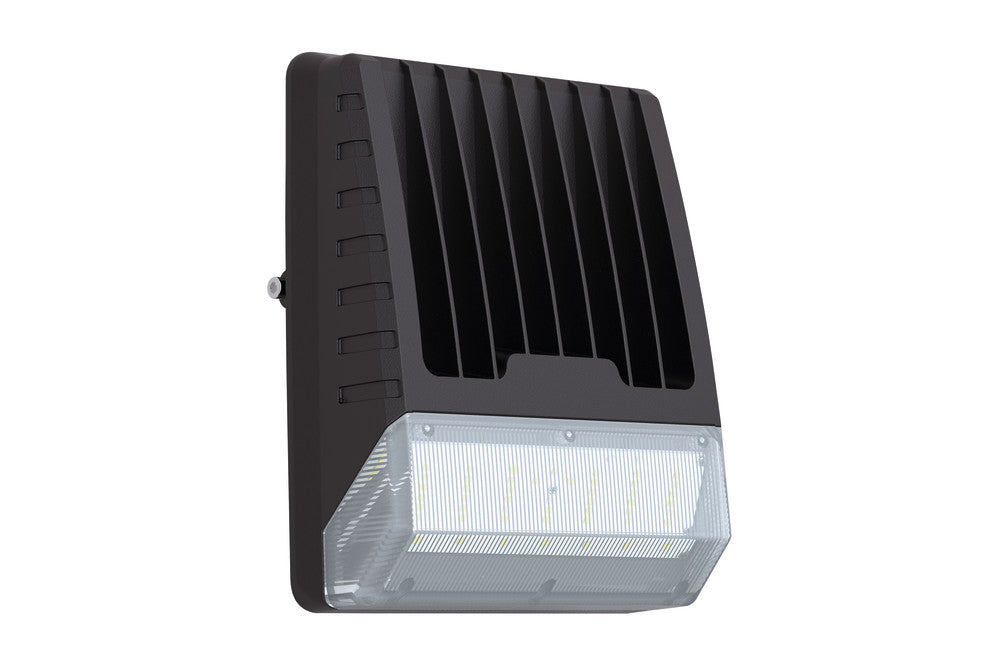

OUTDOOR WALL PACK ANGULAR LIGHT SENSOR IP65 5500LM 50W 4000K 120 BEAM BLACK INTEGRAL

THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCTIntegral Compact Tough Wall Pack Lights are ideal for perimeter lighting as well as pedestrian and vehicle access areas in commercial and industrial environments. The IP65 weatherproof and IK08 impact-resistant cast aluminium body makes it perfectly suitable for outdoor installation.This model features a light sensor, so the unit automatically switches on at dusk and off at dawn, increasing efficiency.

Light sensor for increased efficiencyStylish and contemporary designHard-wearing and weatherproofCast-aluminium body

Barcode :5055788241805
Category :Luminaires
Features :Dusk-to-Dawn Sensor
Market Segment :Outdoor
Product Body Finish :Dark Brown
Product Type :Wall Packs
Range Name :Compact Tough
Warranty (Years) :3

Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):

Beam Angle :113
Beam Angle (Range) :90 to 160
Colour Rendering Index (CRI) :80
Colour Temperature :
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :
Lifetime (hours) :50000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :4000 to 7000
Luminous efficacy (lm/W) :105
Luminous Flux in Lumens (lm) :5250
Sensor / Overide :
Switching Cycles:100000

Amperage (mA) :
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :220-240
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :40 to 70
Power Consumption (w) :50
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :100-277
Wattage equivalent (W) :
Watts per metre :
EN :EN-60598
LVD Certified:Yes

New Energy Rating :
IK Rating (Impact Protection) :IK08
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP65
Lowest Operating Temperature (°C) :
Maximum Operating Temperature (°C) :45
CE RoHS :Yes

Package Length (mm) :260
Package Width (mm) :250
Package Depth (mm) :160
Package Weight (g) :2000
