6FT IP66 IK10 35W 5250LM 3000K to 5700K 120 BEAM ANGLE 150LM/W NON-DIMM-LINKABLE RAPID CONNECT EASY-FIT

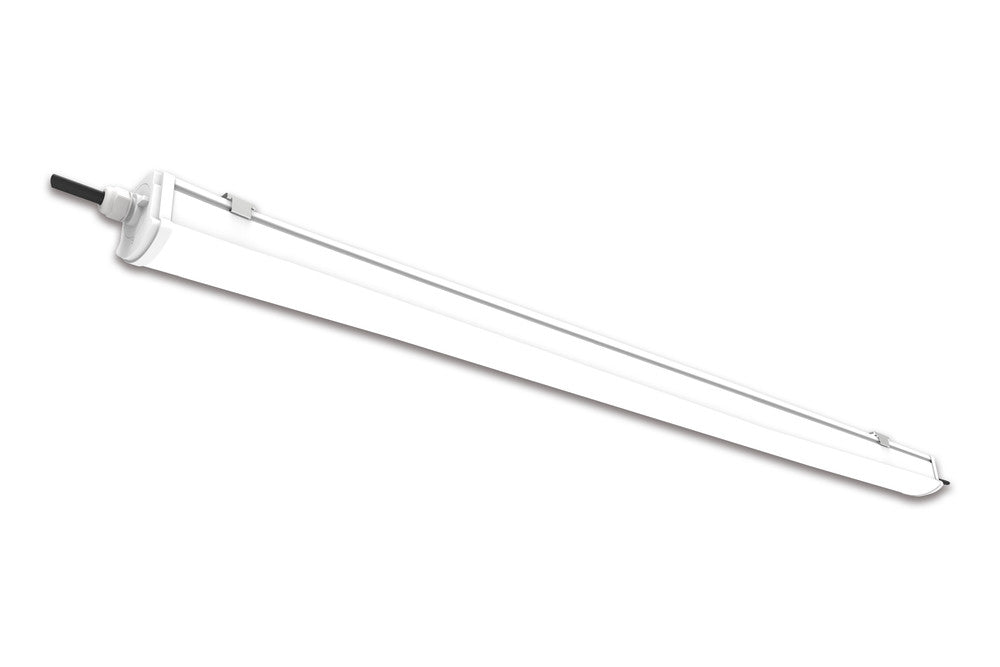

The Toughshell+ batten features a rugged IK10 and IP66 dust and waterproof polycarbonate construction. The opal diffuser provides even light distribution, ideal for demanding environments such as warehouses, factories, car parks and more.
5250lm40000hrs150lm/WRapid connectCCT SwitchableIP66IK10
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :120
Beam Angle (Range) :
Colour Rendering Index (CRI) :80
Colour Temperature :3000/4000/5700 - Warm White/Cool White/Daylight
Colour Temperature Name :Warm White/Cool White/Daylight
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :3000/4000/5700
LED Type :Surface mounted device (SMD)
Lifetime (hours) :40000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :150
Lumens Range :4000 to 7000
Luminous efficacy (lm/W) :
Luminous Flux in Lumens (lm) :5250
Sensor / Overide :
Switching Cycles:25000
Amperage (mA) :
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :Yes
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :200-240
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :20 to 40
Power Consumption (w) :35
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :200-240
Wattage equivalent (W) :
Watts per metre :
EN :EN-60598
LVD Certified:Yes
New Energy Rating :D
IK Rating (Impact Protection) :IK10
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP66
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :40
CE RoHS :Yes
Package Length (mm) :1868
Package Width (mm) :78
Package Depth (mm) :74
Package Weight (g) :1600
