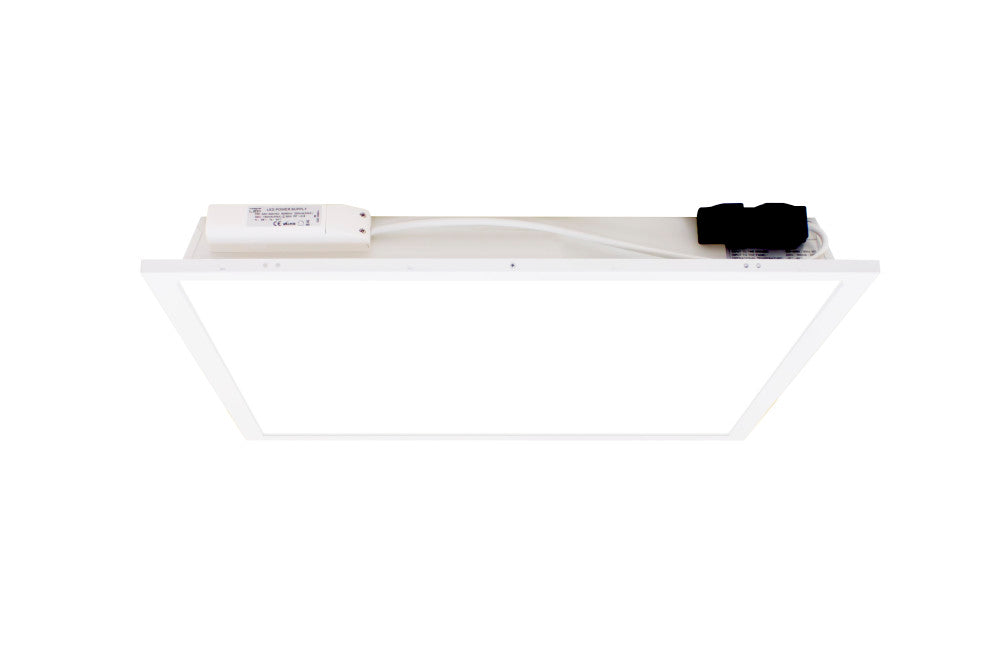

This 42W and 5500lm Integral LED Performance+ panel with integrated emergency function delivers a uniform Daylight light across the whole of its surface. Its very high level of efficacy (131lm/W) offers savings in running cost against traditional 72W fluorescent fitting as well as many other LED panel.Its lightweight steel, integrated emergency pack and polycarbonate diffuser means installation is simple and maintenance is minimal. With charge indicator and self-test button positioned on the front of the panel it can then be viewed from all angles so continued function can be quickly confirmed. Once installed correctly in the event of mains power failure the panel will continue emitting light (150 lumen output) for a minimum of 3 hours.All Integral LED emergency panels comply with BS EN 60598-2-22 and comply with designs that require compliance with BS EN 50172:2004.

Cool White5500 Lumens131lm/WTP(a) rated Polycarbonate diffuser5 Year Warranty

Barcode :5055788233169
Category :Panels
Features :Emergency Function
Market Segment :Commercial indoor
Product Body Finish :White steel
Product Type :600 x 600
Range Name :Compact High Performance+
Warranty (Years) :5

Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):

Beam Angle :110
Beam Angle (Range) :90 to 160
Colour Rendering Index (CRI) :80
Colour Temperature :4000K - Cool White
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :Back-lit
Lifetime (hours) :50000
Lighting Method :Back-lit
Lumens in Emergency mode (lm) :150
Lumens per meter (lm/m) :
Lumens Range :4000 to 7000
Luminous efficacy (lm/W) :131
Luminous Flux in Lumens (lm) :5500
Sensor / Overide :
Switching Cycles:25000

Amperage (mA) :175
Battery Configuration :Panasonic HHR210AH DC1.2V 2100mAh
Dimming :Non-Dimmable
Driver Included :Integrated
Electric Current :AC
Emergency Battery Life (years) :3
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :Panels
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :40 to 70
Power Consumption (w) :42
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240
Wattage equivalent (W) :86.4
Watts per metre :
EN :EN-60598
LVD Certified:Yes

New Energy Rating :
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :IP40
IP Rating (Ingress Protection) :IP40
Lowest Operating Temperature (°C) :-10
Maximum Operating Temperature (°C) :40
CE RoHS :Yes

Package Length (mm) :630
Package Width (mm) :610
Package Depth (mm) :80
Package Weight (g) :3800
