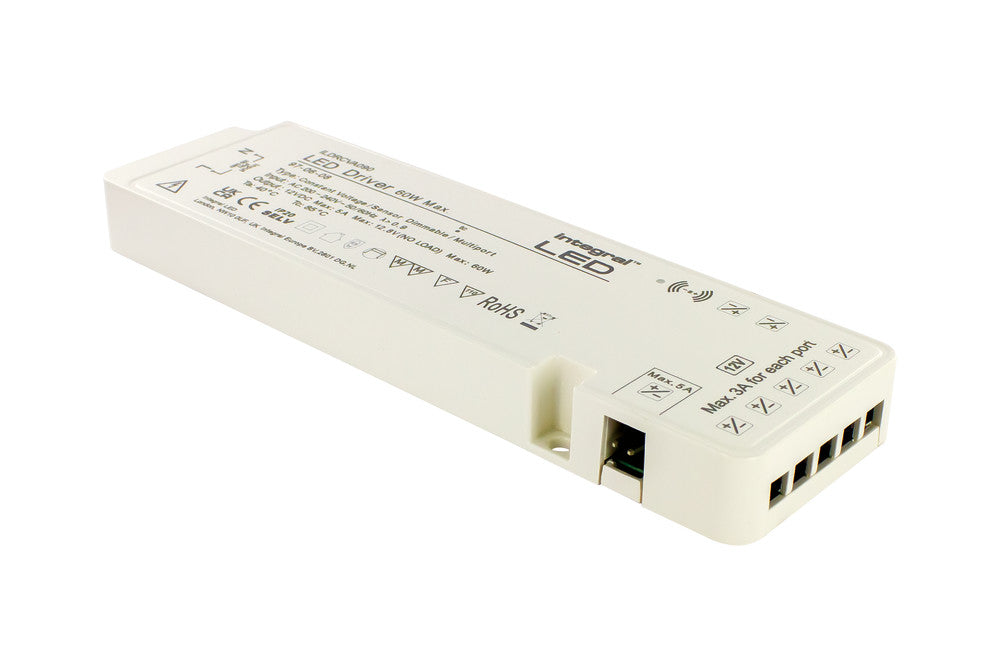

CONSTANT VOLTAGE MULTIPORT (7+1) DRIVER SENSOR DIMMABLE 60W MAX 12VDC IP20 200-240V INPUT UK PLUG

This convenient Plug & Play driver is easy to install with no wiring required. Simply plug in compatible lights, especially Integral LED strips, and the sensor of your choice to transform furniture, cabinets and other small scale projects into reactive lighting settings. Please see related products for sensors and accessories. The driver is dimmable with a compatible sensor.

Ideal for furniture, cabinet, display and other small applicationsInput Voltage: 200-240VAC. UK plug includedOutput Power: 60WOutput: 12VDC Constant VoltageShort Circuit / Over Load / Over Heat ProtectionClass IIPlug & Play ports, easy to install, no wiring requiredVariety of sensors available to smarten up your lights!

Barcode :5055788261421
Category :Drivers
Features :
Market Segment :Commercial indoor, Residential indoor
Product Body Finish :
Product Type :Constant Voltage
Range Name :Multiport
Warranty (Years) :3

Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):

Beam Angle :
Beam Angle (Range) :
Colour Rendering Index (CRI) :
Colour Temperature :
Colour Temperature Name :
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :
LED Type :
Lifetime (hours) :
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :
Luminous efficacy (lm/W) :
Luminous Flux in Lumens (lm) :
Sensor / Overide :
Switching Cycles:

Amperage (mA) :
Battery Configuration :
Dimming :With appropriate sensor
Driver Included :
Electric Current :
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :0.36A
Input Voltage (V) :200-240
Insulation Guard :
Output Current (mA) :5000
Output Voltage (V) :12
Power Consumption (Range) :40 to 70
Power Consumption (w) :60
Power Consumption per meter (W/m) :
Protection Function :Short Circuit Protection, Overload Protection, Overheat Protection
True Wattage Eq (W) :
Voltage Range (v) :220-240
Wattage equivalent (W) :
Watts per metre :
EN :EN61347-1, EN61347-2-13
LVD Certified:Yes

New Energy Rating :
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP20
Lowest Operating Temperature (°C) :-15
Maximum Operating Temperature (°C) :40
CE RoHS :Yes

Package Length (mm) :253
Package Width (mm) :61
Package Depth (mm) :46
Package Weight (g) :400
