EVO PANEL 1200X600 5500LM 50W 4000K NON-DIMMABLE 110 LM/W

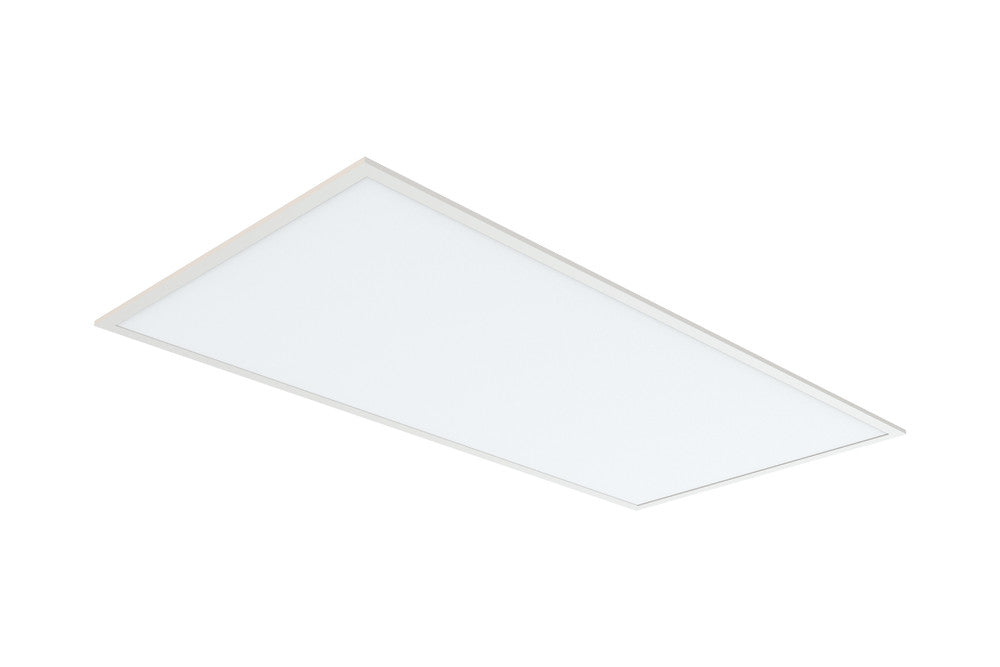

This is a 50W, 5500lm 1200x600 Integral LED Evo panel. It delivers a uniform white light across the whole of its surface. The high level of efficacy (110lm/W) offers savings in running cost against traditional 144W fluorescent fittings as well as many other LED panels.
Cool White5500 Lumens110lm/W5 year warranty
Barcode :5055788256724
Category :Panels
Features :
Market Segment :Commercial indoor
Product Body Finish :White
Product Type :1200 x 600
Range Name :Evo
Warranty (Years) :5
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :110
Beam Angle (Range) :
Colour Rendering Index (CRI) :80
Colour Temperature :4000K - Cool White
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :Surface mounted device (SMD)
Lifetime (hours) :50000
Lighting Method :Back-lit
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :4000 to 7000
Luminous efficacy (lm/W) :110
Luminous Flux in Lumens (lm) :5500
Sensor / Overide :
Switching Cycles:25000
Amperage (mA) :
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :Yes
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :40 to 70
Power Consumption (w) :50
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240
Wattage equivalent (W) :172.8
Watts per metre :
EN :EN-60598
LVD Certified:Yes
New Energy Rating :E
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :20
IP Rating (Ingress Protection) :IP20
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :40
CE RoHS :Yes
Package Length (mm) :1270
Package Width (mm) :675
Package Depth (mm) :50
Package Weight (g) :5400
