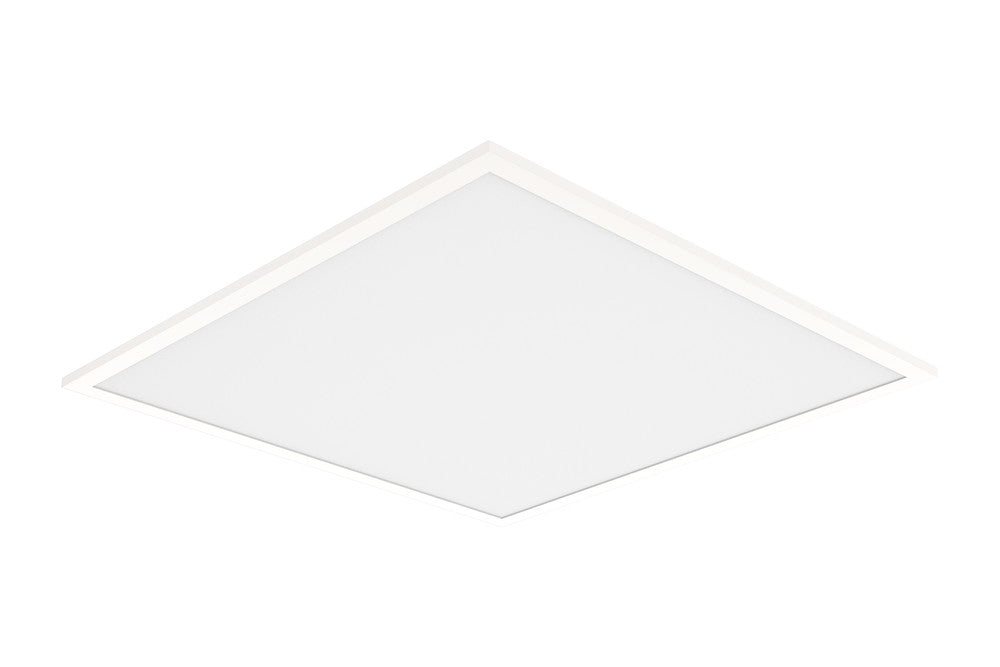

EVO PANEL 600X600 3300LM 33W 4000K UGR<19 NON-DIMMABLE 100LM/W

This is a 30W, 3600lm 600x600 Integral LED Evo panel. It delivers a uniform white light across the whole of its surface with a diffuser that will help acheive UGR<19 . The high level of efficacy (100lm/W) offers savings in running cost against traditional 72W fluorescent fittings as well as many other LED panels.

Cool White3300 Lumens100lm/WUGR<193 Year Warranty

Barcode :5055788257158
Category :Panels
Features :
Market Segment :Commercial indoor
Product Body Finish :White
Product Type :600 x 600
Range Name :Evo
Warranty (Years) :3

Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):

Beam Angle :110
Beam Angle (Range) :
Colour Rendering Index (CRI) :80
Colour Temperature :4000K - Cool White
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :Surface mounted device (SMD)
Lifetime (hours) :30000
Lighting Method :Back-lit
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :2000 to 4000
Luminous efficacy (lm/W) :100
Luminous Flux in Lumens (lm) :3300
Sensor / Overide :
Switching Cycles:25000

Amperage (mA) :850
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :Yes
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :20 to 40
Power Consumption (w) :33
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240
Wattage equivalent (W) :86.4
Watts per metre :
EN :EN-60598
LVD Certified:Yes

New Energy Rating :F
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :20
IP Rating (Ingress Protection) :IP20
Lowest Operating Temperature (°C) :-25
Maximum Operating Temperature (°C) :45
CE RoHS :Yes

Package Length (mm) :660
Package Width (mm) :420
Package Depth (mm) :42
Package Weight (g) :2300
