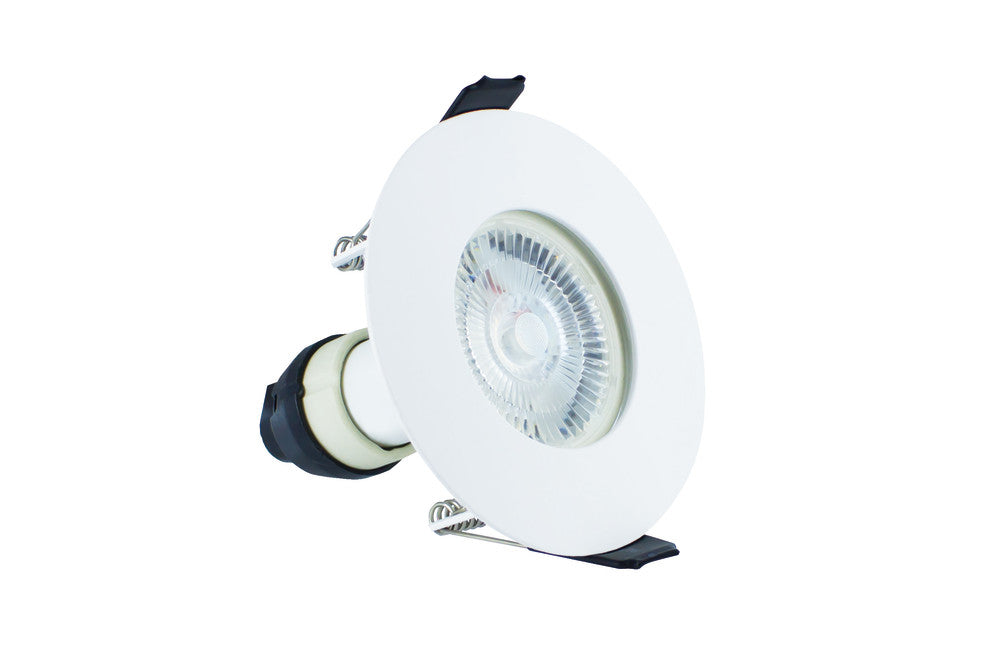

EVOFIRE FIRE RATED DOWNLIGHT 70MM CUTOUT IP65 WHITE ROUND +GU10 HOLDER INTEGRAL
The Evofire Fire Rated Downlight is a safe and attractive fitting for a GU10 or MR16 LED lamp. The fully open design of the Evofire does not conceal your lamp in a large metal canister, which can trap some of the heat it generates, lowering lamp lifetime and performance. Lamps installed in an Evofire run at up to 10 degrees C cooler than a typical can-style fire rated downlight from leading LED brands - this can extend the lifetime of your lamps.As well being very tough thanks to its steel construction, The Evofire is also a highly aesthetic choice for Fire Rated lighting. The 1mm blend-in bezel is up to 10 times thinner than typical IP65 rated downlights, has a high quality powder coating and fits almost flush with your ceiling, so the downlight looks discreet and pleasing in any setting.This downlight is fire rated to 30, 60 and 90 minutes in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.Evofire shown with Real Colour GU10 LED lamp (sold separately).
Evolutionary Fire Rated fitting designed by Integral LEDDeveloped in the UK - Patent GB2557957Fire Rating 30/60/90 minutes - Tested in UKAS Accredited LabUltra-thin 1mm 'blend-in' bezelEasy to install Loop-in/Loop-out piano-key style terminal blockSupplied with GU10 holder
Barcode :5055788228325
Category :Downlights
Features :Without Insulation Guard
Market Segment :Commercial indoor, Residential indoor
Product Body Finish :Matt white
Product Type :Fire Rated
Range Name :Evofire
Warranty (Years) :3
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :
Beam Angle (Range) :
Colour Rendering Index (CRI) :
Colour Temperature :
Colour Temperature Name :
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :
LED Type :
Lifetime (hours) :
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :
Luminous efficacy (lm/W) :
Luminous Flux in Lumens (lm) :
Sensor / Overide :
Switching Cycles:
Amperage (mA) :
Battery Configuration :
Dimming :
Driver Included :
Electric Current :
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :No
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :
Power Consumption (w) :
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :
Wattage equivalent (W) :
Watts per metre :
EN :
LVD Certified:
New Energy Rating :
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :IP20
IP Rating (Ingress Protection) :IP65
Lowest Operating Temperature (°C) :
Maximum Operating Temperature (°C) :
CE RoHS :Yes
Package Length (mm) :90
Package Width (mm) :90
Package Depth (mm) :65
Package Weight (g) :153
