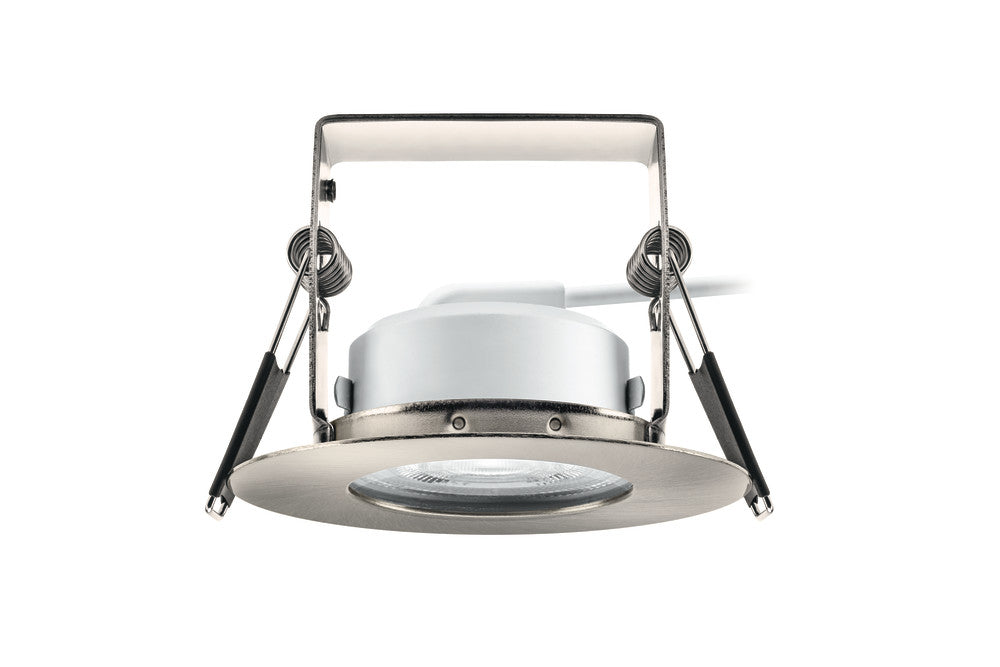

EVOFIRE+ FRDL 70MM CUTOUT IP65 400LM 3.8W 4000K 36 BEAM DIMMABLE 105LM/W SATIN NICKEL ROUND + INSULATION GUARD INTEGRAL
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.Ideal for tight spaces - Only 60mm high with a built-in insulation guard and replaceable lamp (Evolight).Attractive look in any room - Ultra-thin 1mm blend-in bezel with a premium finish.Easy wiring - with a 28cm cable and Fast-Fit, loop-in/loop-out, junction box for tool-free assembly.Easy to install and remove - Lightweight steel body, only 172g.Extended lamp life - Open design allows airflow to extend lamp life compared to traditional designs.70mm Cut-Out, 85mm Diameter, IP65, Dimmable.This downlight is fire rated to 30, 60 and 90 minutes in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.
Only 60mm highDeveloped in the UK - Patent GB2557957Fire Rating 30/60/90 minutes - Tested in UKAS Accredited LabUltra-thin (1mm) blend-in premium finish bezelSupplied with a 28cm cable and Fast-Fit loop-in/loop-out junction boxLamp included
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :36
Beam Angle (Range) :
Colour Rendering Index (CRI) :80
Colour Temperature :4000K - Cool White
Colour Temperature Name :Cool White
Compatible Dimmers :Varilight JQP401W
Correlated Colour Temperature (CCT) (K) :4000
LED Type :SMD
Lifetime (hours) :15000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :
Luminous efficacy (lm/W) :105
Luminous Flux in Lumens (lm) :400
Sensor / Overide :
Switching Cycles:7500
Amperage (mA) :24
Battery Configuration :
Dimming :Dimmable
Driver Included :
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :3 to 5
Power Consumption (w) :3.8
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240
Wattage equivalent (W) :
Watts per metre :
EN :EN-60598
LVD Certified:Yes
New Energy Rating :F
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :20
IP Rating (Ingress Protection) :IP65
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :40
CE RoHS :Yes
Package Length (mm) :90
Package Width (mm) :90
Package Depth (mm) :83
Package Weight (g) :220
