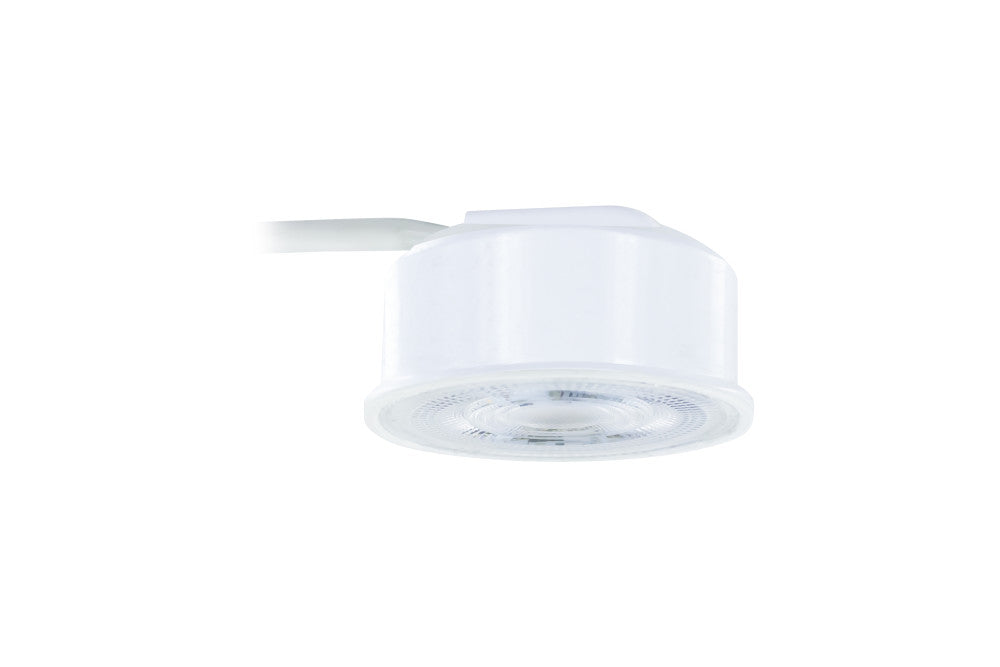

EVOLIGHT 410LM 3.8W 2700K DIMMABLE 36 BEAM INTEGRAL
The Integral LED Evolight is a light bulb technology innovation. This pre-wired 240V solution replaces your 12V MR16 lamp, lamp holder and transformer as well as your 240V GU10 and lamp holder. Its very low profile, only 29mm height, avoids obstacles in the ceiling void. The supplied 28cm cable allows an easy installation. The integral LED Evolight is a quality dimmable light source perfect for any canless downlight (compatible with non-dimmable) and also to be used in combination with the Integral LED Evofire+.
Warm Light345 Useful Lumens (410 Nominal)Dimmable
Barcode :5055788252689
Category :Lamps
Features :
Market Segment :Commercial indoor, Residential indoor
Product Body Finish :Matt white
Product Type :Modules
Range Name :Evolight
Warranty (Years) :2
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :36
Beam Angle (Range) :20 to 40
Colour Rendering Index (CRI) :80
Colour Temperature :2700K - Warm
Colour Temperature Name :Warm
Compatible Dimmers :Varilight JQP401W
Correlated Colour Temperature (CCT) (K) :2700
LED Type :Surface mounted device (SMD)
Lifetime (hours) :15000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :250 to 470
Luminous efficacy (lm/W) :108
Luminous Flux in Lumens (lm) :410
Sensor / Overide :
Switching Cycles:7500
Amperage (mA) :24
Battery Configuration :
Dimming :Dimmable
Driver Included :Yes
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :3 to 5
Power Consumption (w) :4 3.8
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :50
Voltage Range (v) :220-240
Wattage equivalent (W) :50
Watts per metre :
EN :EN-62560
LVD Certified:Yes
New Energy Rating :F
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP20
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :40
CE RoHS :Yes
Package Length (mm) :55
Package Width (mm) :55
Package Depth (mm) :35
Package Weight (g) :50
