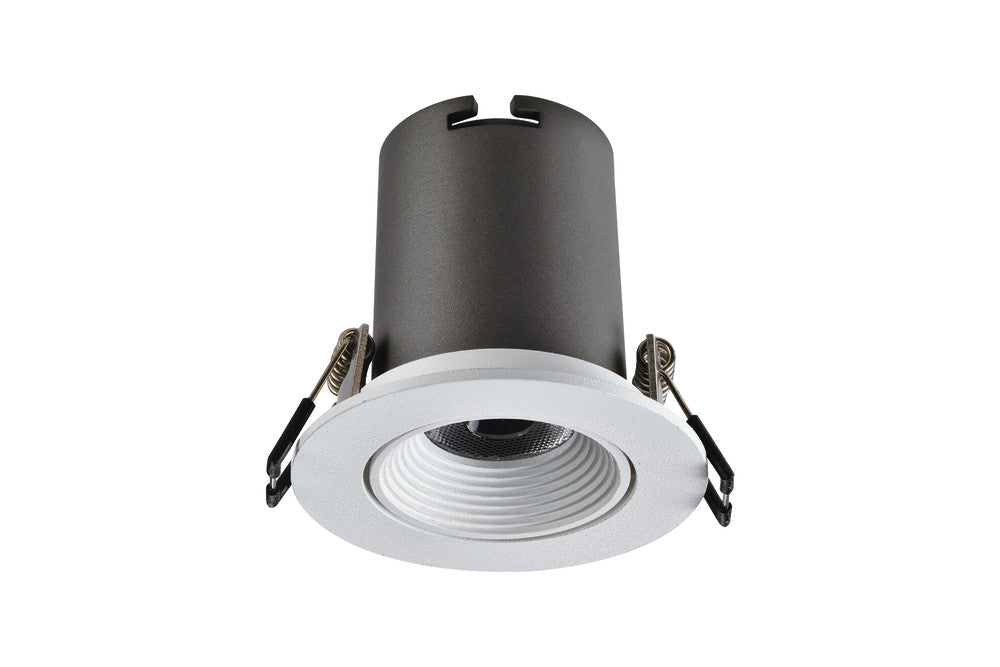

Lux Hi-Brite range is uniquely designed to provide maximum lumen output from a very compact body. Minimum glare is achieved from a deep-recessed construction, guaranteeing comfortable light. Lux Hi-Brite downlights are ideal for applications requiring high performance in limited spaces, such as hospitality, retail or commerce. The stylish fixed and tiltable finishes can illuminate a wide range of areas. Complement with Lux Mini range for coherent multilevel lighting design.

60mm cut out715lm30 Degrees Beam82lm/W3000K30 Degrees TiltDimmable

Barcode :5055788250685
Category :Downlights
Features :
Market Segment :Accent lighting
Product Body Finish :Matt white
Product Type :LED Downlights
Range Name :Lux Hi-Brite 60 Tilt
Warranty (Years) :3

Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):

Beam Angle :30
Beam Angle (Range) :10 to 20
Colour Rendering Index (CRI) :80
Colour Temperature :3000K - Warm White
Colour Temperature Name :Warm White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :3000
LED Type :Chip-on-board (COB)
Lifetime (hours) :60000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :470 to 850
Luminous efficacy (lm/W) :82
Luminous Flux in Lumens (lm) :715
Sensor / Overide :
Switching Cycles:15000

Amperage (mA) :
Battery Configuration :
Dimming :Dimmable
Driver Included :Yes
Electric Current :
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :8 to 15
Power Consumption (w) :9
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240VAC 50/60Hz
Wattage equivalent (W) :
Watts per metre :
EN :EN 60598, EN 55015, EN 61547, EN 61000
LVD Certified:Yes

New Energy Rating :G
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP20
Lowest Operating Temperature (°C) :-10
Maximum Operating Temperature (°C) :40
CE RoHS :Yes

Package Length (mm) :125
Package Width (mm) :110
Package Depth (mm) :75
Package Weight (g) :310
