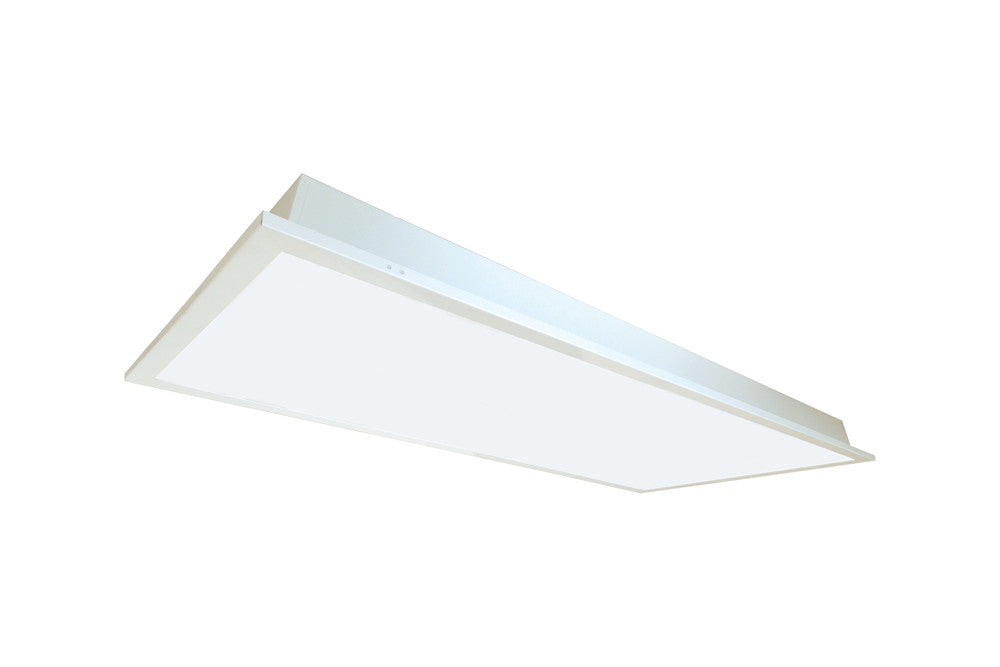

HIGH PERFORMANCE+ PANEL 1200X300 IP44 3500LM 25W 4000K NON-DIMM 140LM/W BACKLIT INTEGRAL

This 25W and 3500lm Integral LED Performance+ panel delivers a uniform white light across the whole of its surface. Its very high level of efficacy (140lm/W) offers savings in running cost against traditional 72W fluorescent fitting as well as many other LED panel.The panel is fitted with a polycarbonate diffuser that has been tested by a UK based laboratory and passes BS782-0:2004 Method 508A, as required by Fire Safety regulations.Its lightweight steel and PC design means installation is simple and maintenance is minimal. It is an ideal solution for many applications: offices, meeting rooms, corridors, airports, schools/universities and retails environments.

Cool White3500 Lumens140lm/WTP(a) rated Polycarbonate diffuser5 Year Warranty

Barcode :5055788228981
Category :Panels
Features :
Market Segment :Commercial indoor
Product Body Finish :White steel
Product Type :1200 x 300
Range Name :High Performance+
Warranty (Years) :5

Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):

Beam Angle :110
Beam Angle (Range) :90 to 160
Colour Rendering Index (CRI) :80
Colour Temperature :4000K - Cool White
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :Back-lit
Lifetime (hours) :50000
Lighting Method :Back-lit
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :2000 to 4000
Luminous efficacy (lm/W) :140
Luminous Flux in Lumens (lm) :3500
Sensor / Overide :
Switching Cycles:25000

Amperage (mA) :105
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :Integrated
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :20 to 40
Power Consumption (w) :25
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240
Wattage equivalent (W) :86.4
Watts per metre :
EN :EN-60598
LVD Certified:Yes

New Energy Rating :
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :IP40
IP Rating (Ingress Protection) :IP44
Lowest Operating Temperature (°C) :-10
Maximum Operating Temperature (°C) :40
CE RoHS :Yes

Package Length (mm) :1250
Package Width (mm) :650
Package Depth (mm) :108
Package Weight (g) :4200
