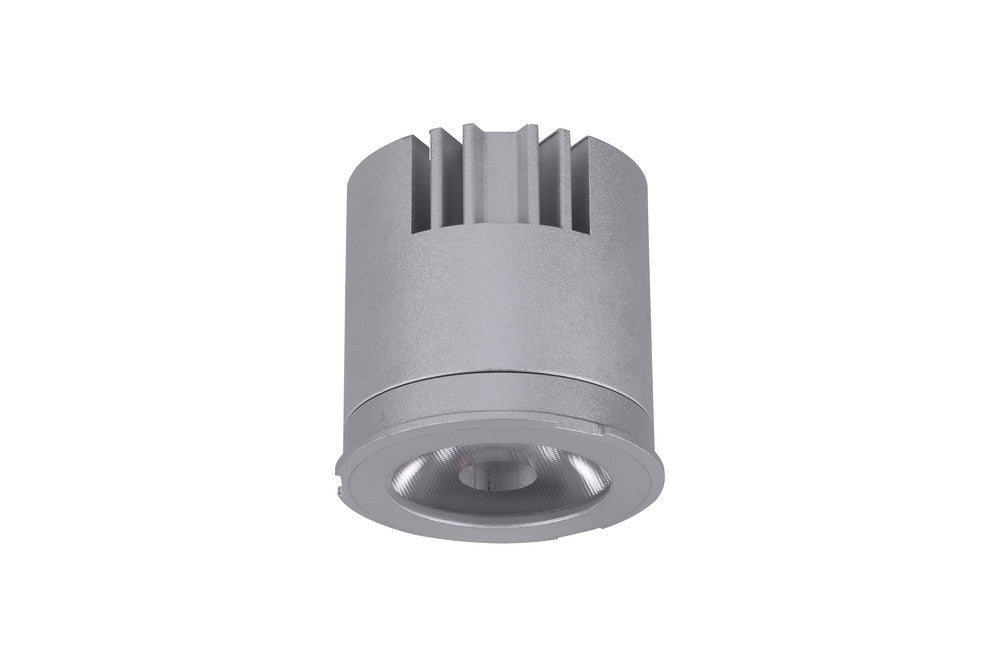

LED LIGHT MODULE 1020LM 11W 92LM/W 4000K CRI90 36 BEAM IP54
Integral’s AccentPlus light modules are the perfect solution for GU10/MR16 compatible downlight projects that require punchy light output or specific dimming integration such as Dali, 0-10V, TRIAC or push dim (see suggested products below for driver options).The modules are CRI90 giving real colour and have a range of beam angle accessories providing solutions for specific lighting designs.
Cool LightDimmable with compatible driver1020 lumens
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :36
Beam Angle (Range) :20 to 40
Colour Rendering Index (CRI) :90
Colour Temperature :4000K - Cool White
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :Chip on board (COB)
Lifetime (hours) :50000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :850 to 1500
Luminous efficacy (lm/W) :92
Luminous Flux in Lumens (lm) :1020
Sensor / Overide :
Switching Cycles:
Amperage (mA) :250
Battery Configuration :
Dimming :Dimmable with dimmable drivers and compatible dimmers
Driver Included :No
Electric Current :DC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :8 to 15
Power Consumption (w) :11
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :
Wattage equivalent (W) :
Watts per metre :
EN :EN-60598
LVD Certified:Yes
New Energy Rating :
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP54
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :45
CE RoHS :Yes
Package Length (mm) :88
Package Width (mm) :63
Package Depth (mm) :118
Package Weight (g) :240
