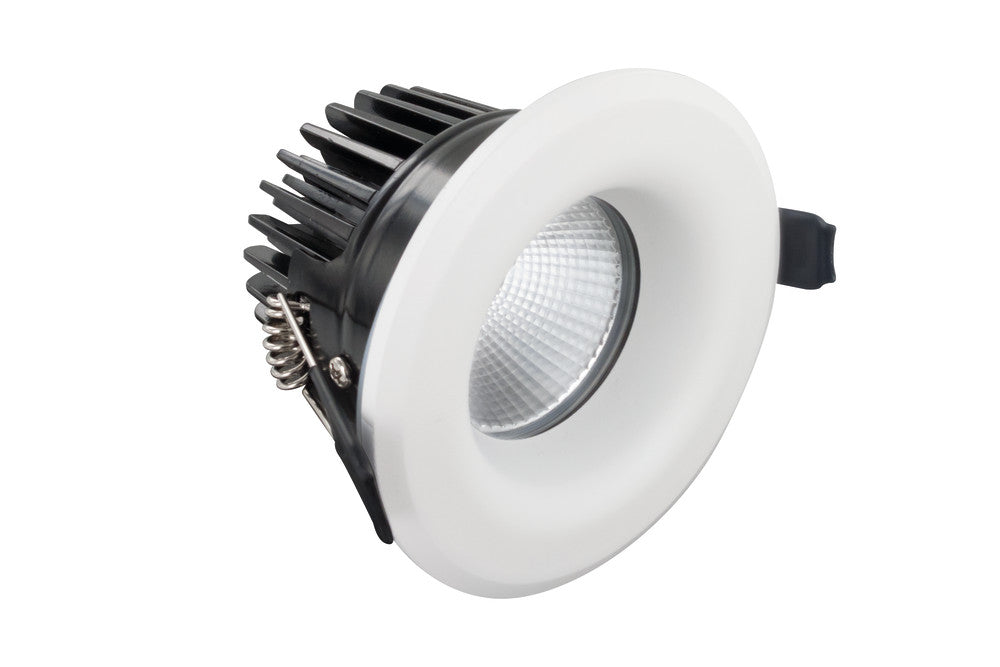

LUXFIRE FIRE RATED DOWNLIGHT 70MM CUTOUT IP65 700LM 9W 3000K 36 BEAM DIMMABLE 78LM/W WHITE INTEGRAL
**** Awarded 4 Stars "Recommended" by Lux Review (January 2016) ****Who says you can't have style without safety? Integral LED Lux Fire downlights not only conform to 30, 60 and 90mins fire rating specifications but are also rated to IP65, so they can be used safely in bathrooms. Lux Fire fire-rated downlights have been tailored to deliver a premium finish to any home or business with their low-glare, high-quality light and contemporary design that looks impressive in any setting.Lux Fire downlights are built using a deep recessed COB LED light source, providing a beam that has softened edges for a luxurious effect. Supplied with a white scalloped metal bezel (interchangeable). Easy to install with low-profile body. Complete with Loop-in / Loop-out driver. IP65 and Air tightness compliant with Part C and Part L. Resistance to Sound compliant with Part E.
Warm white700 LumensDimmableMatt white finishAwarded 4 Stars Recommended by Lux Review
Barcode :5055788213758
Category :Downlights
Features :
Market Segment :Commercial indoor, Residential indoor
Product Body Finish :Matt white
Product Type :Fire Rated
Range Name :Lux Fire
Warranty (Years) :3
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :55 36
Beam Angle (Range) :20 to 40 40 to 60
Colour Rendering Index (CRI) :80
Colour Temperature :3000K - Warm White
Colour Temperature Name :Warm White
Compatible Dimmers :Varilight JQP401W
Correlated Colour Temperature (CCT) (K) :3000
LED Type :Chip on board (COB)
Lifetime (hours) :35000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :470 to 850
Luminous efficacy (lm/W) :78
Luminous Flux in Lumens (lm) :700 640
Sensor / Overide :
Switching Cycles:17500
Amperage (mA) :190
Battery Configuration :
Dimming :Dimmable
Driver Included :Yes
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :Downlights
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :8 to 15
Power Consumption (w) :9
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240
Wattage equivalent (W) :51
Watts per metre :
EN :EN-60598
LVD Certified:Yes
New Energy Rating :F
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP65
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :45
CE RoHS :Yes
Package Length (mm) :140
Package Width (mm) :110
Package Depth (mm) :95
Package Weight (g) :410
