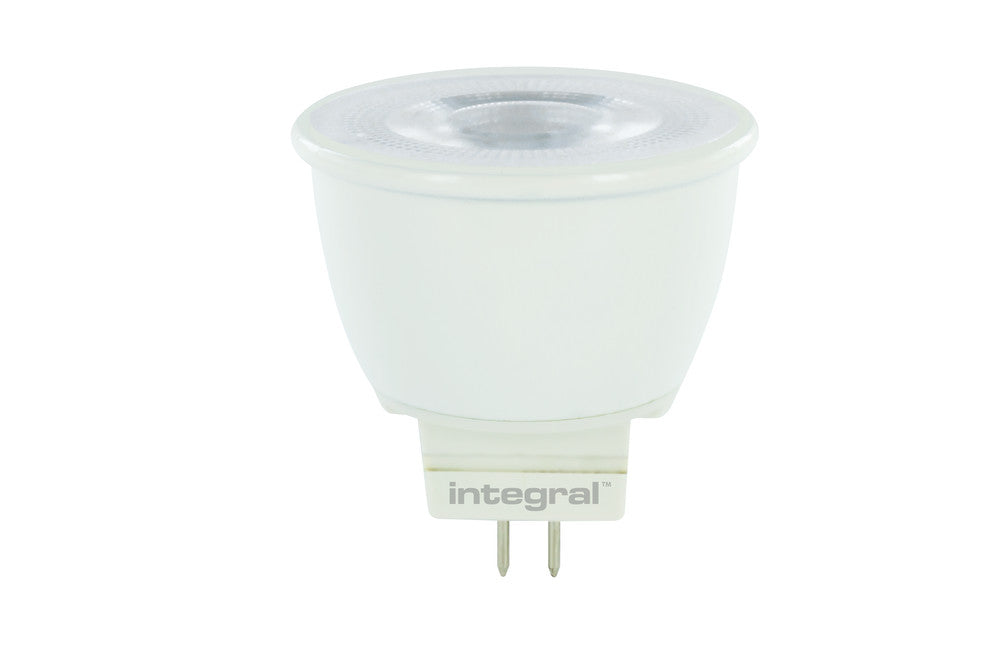

MR11 GU4 BULB 380LM 3.7W 2700K NON-DIMM 36 BEAM INTEGRAL
This 3.7W retro-fit Integral LED MR11 delivers brightness similar to a 35W halogen bulb, in white light. It features three high output Osram LEDs, an anti-glare refractor, all finished with an aluminium and plastic thermally efficient body. The ideal lamp for commercial and home use.
Warm Light345 Useful Lumens (380 Nominal)Non-Dimmable
Barcode :5055788234869
Category :Lamps
Features :
Market Segment :Commercial indoor, Residential indoor
Product Body Finish :
Product Type :MR11
Range Name :12V GU4 Base
Warranty (Years) :2
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :36
Beam Angle (Range) :20 to 40
Colour Rendering Index (CRI) :80
Colour Temperature :2700K - Warm
Colour Temperature Name :Warm
Compatible Dimmers :Varilight
Correlated Colour Temperature (CCT) (K) :2700
LED Type :Surface mounted device (SMD)
Lifetime (hours) :15000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :250 to 470
Luminous efficacy (lm/W) :103
Luminous Flux in Lumens (lm) :380
Sensor / Overide :
Switching Cycles:7500
Amperage (mA) :470
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :Integrated, Needs to be powered via 12V AC Transformer
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :3 to 5
Power Consumption (w) :3.7
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :35
Voltage Range (v) :12
Wattage equivalent (W) :35
Watts per metre :
EN :EN-62560
LVD Certified:Yes
New Energy Rating :F
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP20
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :40
CE RoHS :Yes
Package Length (mm) :35
Package Width (mm) :35
Package Depth (mm) :40
Package Weight (g) :30
