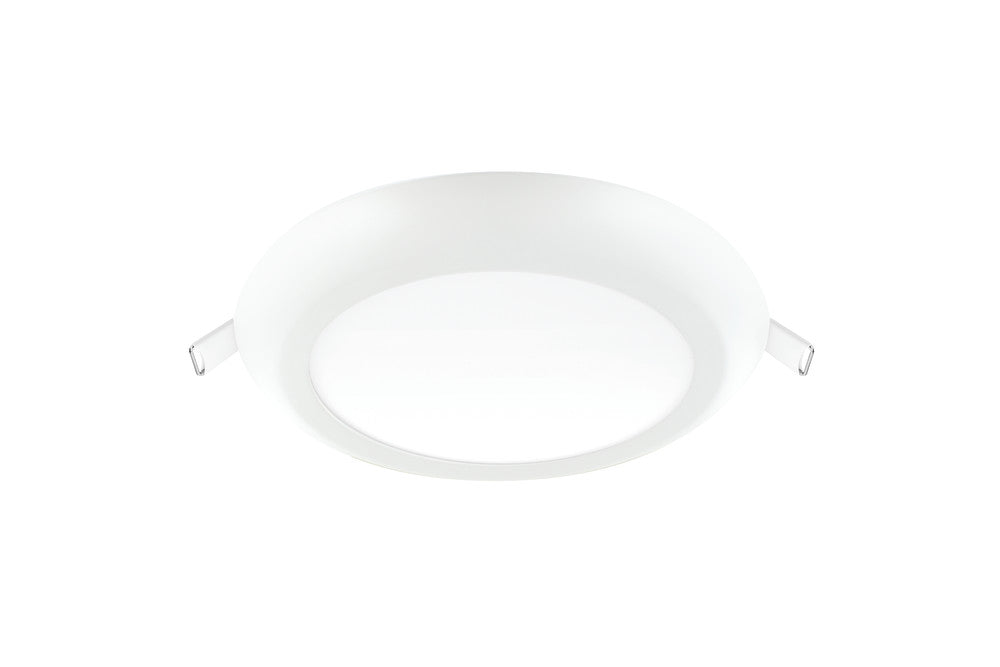

MULTI-FIT DOWNLIGHT 65-160MM CUTOUT 960LM 12W 3000K NON-DIMM 80LM/W WHITE INTEGRAL
This ultra-thin (15.5mm) downlight is supplied with configurable brackets and clips allowing for installation in a cut-out from 65-160mm as well as having a surface mount installation option. Visible flicker is eliminated with the integrated driver and a frosted diffuser provides uniform light.
Warm white840lm80lm/W
Barcode :5055788241164
Category :Downlights
Features :
Market Segment :Commercial indoor
Product Body Finish :Matt white
Product Type :LED Downlights
Range Name :Multi-Fit
Warranty (Years) :3
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :120
Beam Angle (Range) :90 to 160
Colour Rendering Index (CRI) :80
Colour Temperature :3000K - Warm White
Colour Temperature Name :Warm White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :3000
LED Type :Surface mounted device (SMD)
Lifetime (hours) :30000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :850 to 1500
Luminous efficacy (lm/W) :80
Luminous Flux in Lumens (lm) :960
Sensor / Overide :
Switching Cycles:15000
Amperage (mA) :
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :Integrated
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :Downlights
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :8 to 15
Power Consumption (w) :12
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240
Wattage equivalent (W) :18
Watts per metre :
EN :EN-60598
LVD Certified:Yes
New Energy Rating :F
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP20
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :40
CE RoHS :Yes
Package Length (mm) :225
Package Width (mm) :189
Package Depth (mm) :30
Package Weight (g) :300
