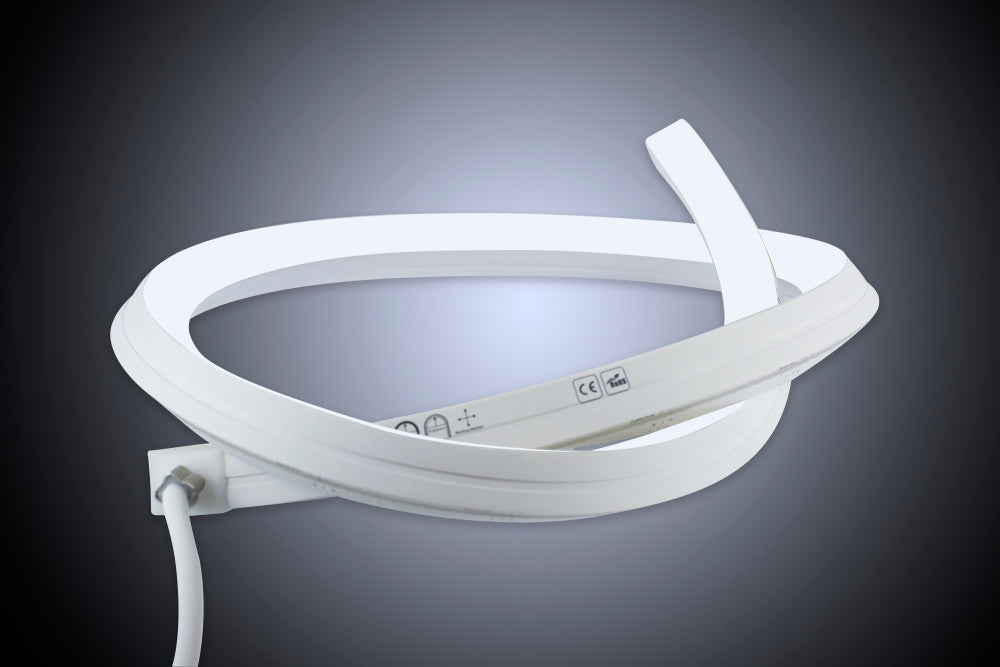

NEON STRIP TOP/SIDE BEND IP67 5M 4000K 24V 7.2W/M 450LM/M 168LED/M 120 BEAM CRI90 BAG PACK
The IP67 Neon Flex strip offers high quality seamless and dot-free light output, ideal for customised neon lights for offices, retail, venues and domestic applications - even in humid indoor or outdoor environment. The silicone extrusion, along with full range of accessories, provides excellent flexibility, exquisite and unique appearance for every project.
Side and Top bendCool White24V DC Constant Voltage7.2W per metreIP67 for indoor and outdoor humid environmentTotally spotless even when dimmedMimics traditional Neon effect lighting
Barcode :5055788262411
Category :Strips
Features :Neon Flex
Market Segment :Commercial indoor, Residential indoor, Outdoor
Product Body Finish :
Product Type :White strip
Range Name :Neon Flex
Warranty (Years) :3
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :120
Beam Angle (Range) :
Colour Rendering Index (CRI) :
Colour Temperature :
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :Surface mounted device (SMD)
Lifetime (hours) :36000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :450
Lumens Range :
Luminous efficacy (lm/W) :
Luminous Flux in Lumens (lm) :
Sensor / Overide :
Switching Cycles:
Amperage (mA) :
Battery Configuration :
Dimming :Dimmable with dimmable drivers and compatible controllers
Driver Included :No
Electric Current :DC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :
Power Consumption (w) :
Power Consumption per meter (W/m) :7.2
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :
Wattage equivalent (W) :
Watts per metre :6.1w - 10w
EN :EN-62031
LVD Certified:Yes
New Energy Rating :
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP67
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :40
CE RoHS :Yes
Package Length (mm) :470
Package Width (mm) :430
Package Depth (mm) :21
Package Weight (g) :1660
