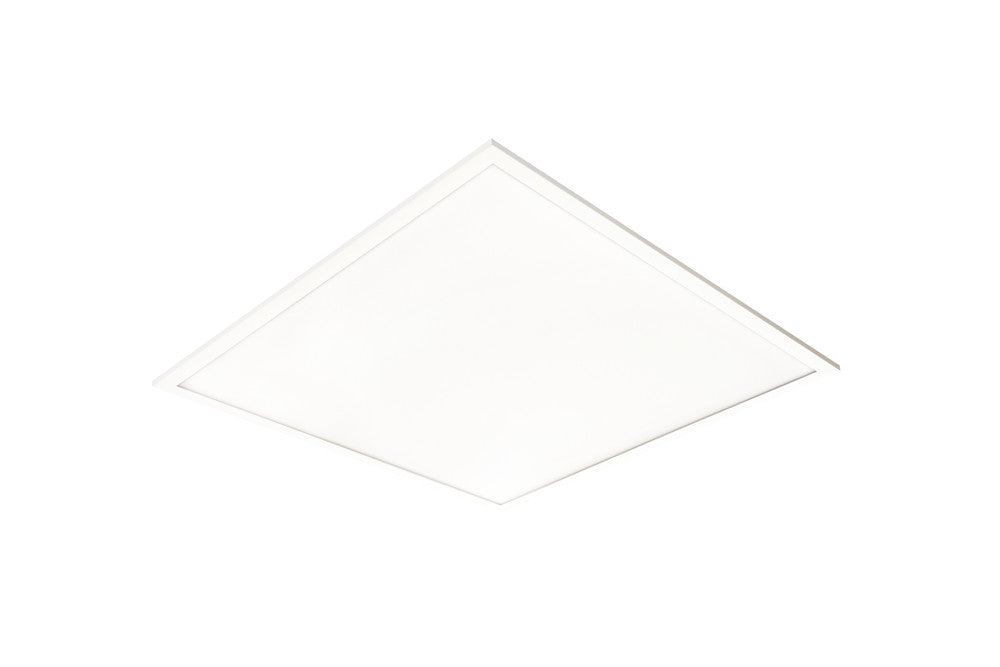

PANEL 600X600 4PACK 2800LM 30W 3000K NON-DIMMABLE 93 LM/W EDGELIT INTEGRAL

THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT. This skilfully engineered panel delivers a uniform warm white light across the whole of its surface. Its high level of efficacy (100lm/W) offers savings in running cost against traditional 72W fluorescent fitting as well as other LED panel. This panel is fitted with a polycarbonate diffuser that has been tested by a UK based laboratory and passes BS782-0:2004 Method 508A, as required by Fire Safety regulations. The diffuser incoroprates a innovative micro prismatic film that helps to control the beam angle and minimize glare so that a Unified Glare Ratio of lower than 19 can be acheived within a lighting design. It is an ideal solution for many applications such as offices, meeting rooms, corridors, schools & universties and retail premises.

Warm white2800 Lumens93lm/WTP(a) rated Polycarbonate diffuser5 Year Warranty

Barcode :5055788241256
Category :Panels
Features :UGR 19
Market Segment :Commercial indoor
Product Body Finish :Matt white
Product Type :600 x 600
Range Name :TPa UGR<19 Advance
Warranty (Years) :5

Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):

Beam Angle :90
Beam Angle (Range) :60 to 90 90 to 160
Colour Rendering Index (CRI) :80
Colour Temperature :3000K - Warm White
Colour Temperature Name :Warm White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :3000
LED Type :Surface mounted device (SMD)
Lifetime (hours) :40000
Lighting Method :Edge-lit
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :2000 to 4000
Luminous efficacy (lm/W) :93
Luminous Flux in Lumens (lm) :2800
Sensor / Overide :
Switching Cycles:12500

Amperage (mA) :800
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :Yes
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :Panels
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :20 to 40
Power Consumption (w) :30
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :
Wattage equivalent (W) :86.4
Watts per metre :
EN :EN-60598
LVD Certified:Yes

New Energy Rating :
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP20
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :40
CE RoHS :Yes

Package Length (mm) :705
Package Width (mm) :670
Package Depth (mm) :1400
Package Weight (g) :12050
