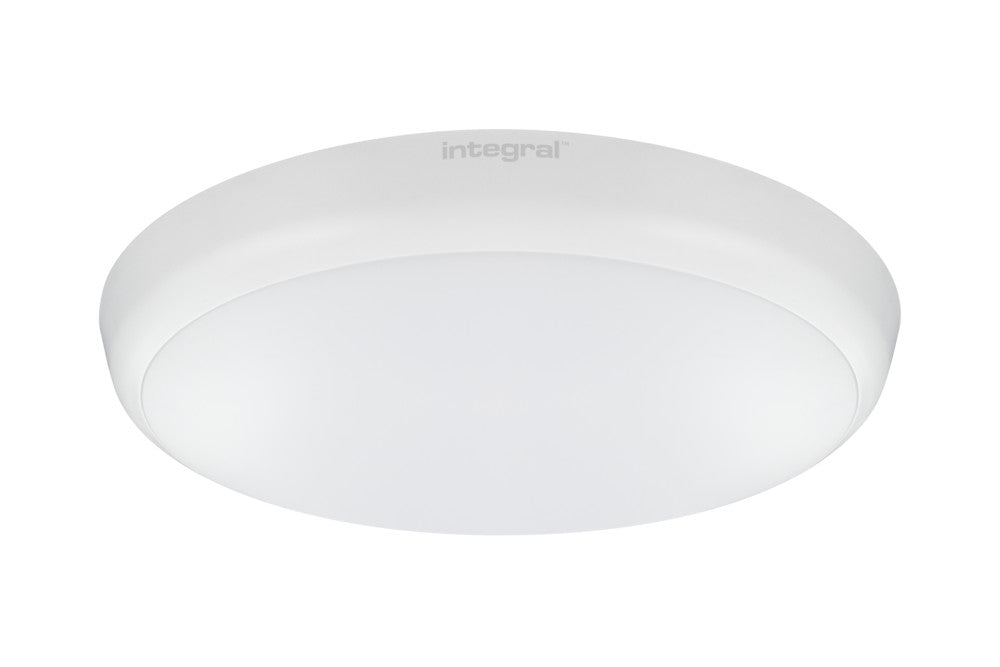

SLIMLINE CEILING/WALL LIGHT EMERGENCY 3HR AND MICROWAVE SENSOR 250MM DIA IP54 1056LM 12W 4000K IK10 120 BEAM NON-DIMM WHITE 88LM/W INTEGRAL
The Integral LED 12W low-energy ceiling and wall light delivers 1056 lumens, 4000K white colour temperature. Its back-lit LED design provides a 120 degree beam angle and an even light distribution. Integral IP54 Slimline ceiling and wall light is designed with only 48mm depth providing a low-profile style, suitable for all indoor areas such as hallways, stairways, walls and ceilings including bathrooms (Zone 2 and 3) and covered (sheltered) external areas, such as porches. Engineered from tough, high-grade polycarbonate material. Long life expectancy of 40,000 hours based on normal usage. Each unit is supplied with an easy installation bracket and an easy-to-follow installation guide. Its integrated emergency pack enhances the easy installation and maintenance. Once installed correctly in the event of mains power failure the ceiling/wall light will continue delivering light (300 lumen output) for a minimum of 3 hours. A constant green LED light is visible from the front to show the emergency mode is functional. Its integrated microwave sensor provides a 140 degree detection area within 5 to 7 meters.
Low-Profile (48mm thin)Easy installation bracketSoft light for walls and ceilings1056 Lumens (Emergency 300 Lumens)Integrated 3hr emergency and microwave sensor function (non-adjustable)
Barcode :5055788216063
Category :Luminaires
Features :Emergency Function Non-adjustable Microwave Sensor
Market Segment :Commercial indoor, Residential indoor
Product Body Finish :Matt white
Product Type :Bulkheads-Ceiling-Wall Lights
Range Name :Slimline
Warranty (Years) :3
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :120
Beam Angle (Range) :90 to 160
Colour Rendering Index (CRI) :80
Colour Temperature :
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :Surface mounted device (SMD)
Lifetime (hours) :40000
Lighting Method :
Lumens in Emergency mode (lm) :300
Lumens per meter (lm/m) :
Lumens Range :850 to 1500
Luminous efficacy (lm/W) :88
Luminous Flux in Lumens (lm) :1056
Sensor / Overide :Yes with sensor
Switching Cycles:20000
Amperage (mA) :150
Battery Configuration :Lithium-ion
Dimming :Non-Dimmable
Driver Included :Yes
Electric Current :AC
Emergency Battery Life (years) :3
Emergency Lumens (lm) :300
Emergency Type :
Emergency Category :Bulkheads
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :8 to 15
Power Consumption (w) :12
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :200-240
Wattage equivalent (W) :
Watts per metre :
EN :EN-60598
LVD Certified:Yes
New Energy Rating :F
IK Rating (Impact Protection) :IK08 IK10
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP54
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :45
CE RoHS :Yes
Package Length (mm) :260
Package Width (mm) :260
Package Depth (mm) :57
Package Weight (g) :960
