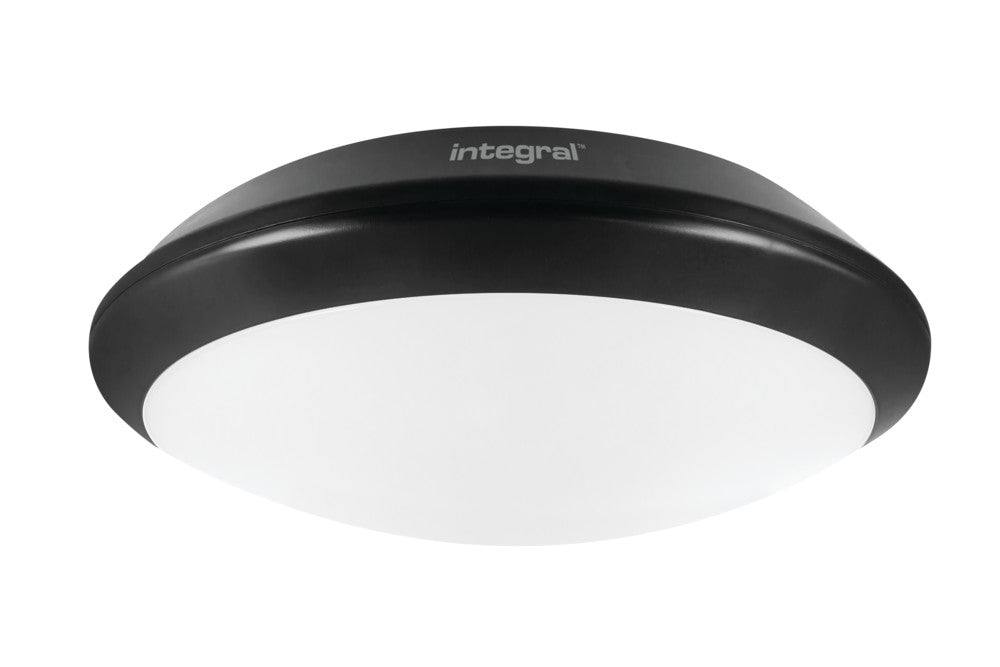

TOUGH SHELL+ BULKHEAD 308MM DIA IP66 1500LM 15W 4000K IK10 110 BEAM NON-DIMM BLACK 100LM/W INTEGRAL
The Integral LED 15W low-energy Tough-Shell+ IP66 Bulkhead has a back-lit LED design that provides a 110 degree beam angle and an even light distribution, available in a black and white finish. This luminaire is suitable for outdoor and indoor installation. Engineered from a super-tough IK10 rated polycarbonate body, it is ideal for external walls in homes, industrial estates and car parks. Indoor uses include walls and ceilings in hallways, stairways and even bathrooms (Zone 1, 2 and 3). This bulkhead delivers 1500 lumens and 4000K white colour temperature. Long life expectancy of 35,000 hours based on normal usage. Each unit is supplied with an easy-to-follow installation guide.This model features side conduit entries and BESA fixing points for added convenience when installing.
Side conduit entry and BESA fixing pointsTough casing (IK10)1500 LumenHigh efficiency 100lm per watt
Barcode :5055788247524
Category :Luminaires
Features :Standard
Market Segment :Indoor and Outdoor Commercial, Industrial, Residential
Product Body Finish :Matt Black
Product Type :Bulkheads-Ceiling-Wall Lights
Range Name :Tough-Shell
Warranty (Years) :3
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :110
Beam Angle (Range) :90 to 160
Colour Rendering Index (CRI) :80
Colour Temperature :
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :Surface mounted device (SMD)
Lifetime (hours) :35000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :1500 to 2000 850 to 1500
Luminous efficacy (lm/W) :100
Luminous Flux in Lumens (lm) :1500
Sensor / Overide :No
Switching Cycles:17500
Amperage (mA) :300
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :Yes
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :No
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :8 to 15
Power Consumption (w) :15
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240
Wattage equivalent (W) :
Watts per metre :
EN :EN-60598
LVD Certified:Yes
New Energy Rating :F
IK Rating (Impact Protection) :IK10
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP66
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :45
CE RoHS :Yes
Package Length (mm) :314
Package Width (mm) :105
Package Depth (mm) :314
Package Weight (g) :1120
