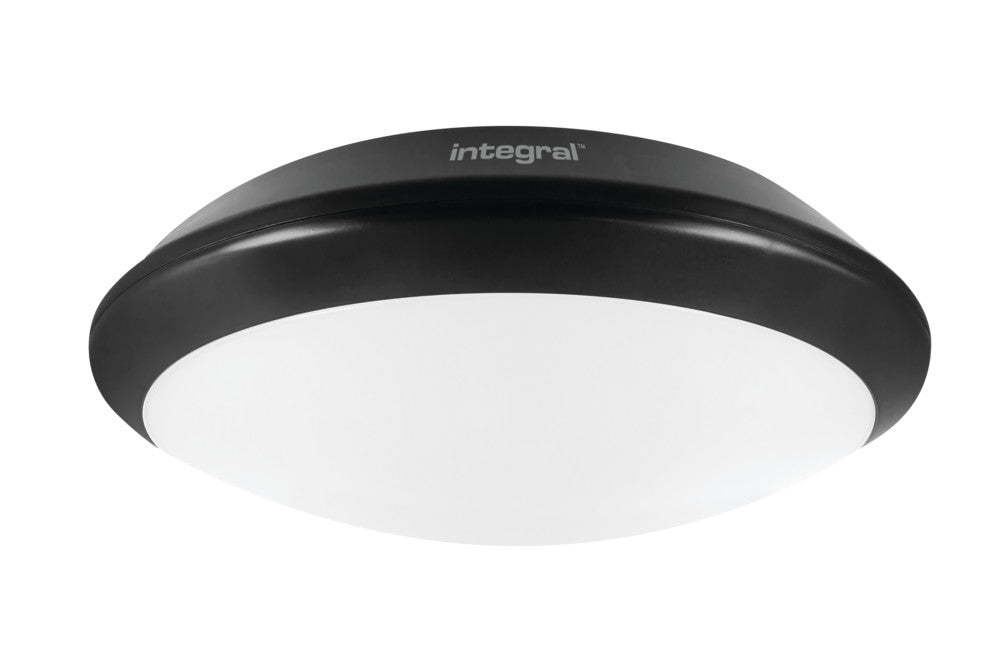

TOUGH SHELL+ BULKHEAD 350MM DIA IP66 2500LM 24W 4000K IK10 120 BEAM NON-DIMM BLACK 104LM/W INTEGRAL

The Integral LED 24W low-energy Tough-Shell+ IP66 Bulkhead has a back-lit LED design that provides a 120 degree beam angle and an even light distribution, available in a black and white finish.This luminaire is suitable for outdoor and indoor installation. Engineered from a super-tough IK10 rated polycarbonate body, it is ideal for external walls in homes, industrial estates and car parks. Indoor uses include walls and ceilings in hallways, stairways and even bathrooms (Zone 1, 2 and 3). This bulkhead delivers 2500 lumens and 4000K white colour temperature. Long life expectancy of 35,000 hours based on normal usage. Each unit is supplied with an easy-to-follow installation guide.

Side and rear cable entriesTough casing (IK10)2500 LumenHigh efficiency 100lm per watt

Barcode :5055788229735
Category :Luminaires
Features :Standard
Market Segment :Indoor and Outdoor Commercial, Industrial, Residential
Product Body Finish :Matt Black
Product Type :Bulkheads-Ceiling-Wall Lights
Range Name :Tough-Shell
Warranty (Years) :3

Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):

Beam Angle :120
Beam Angle (Range) :90 to 160
Colour Rendering Index (CRI) :80
Colour Temperature :
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :Surface mounted device (SMD)
Lifetime (hours) :35000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :2000 to 4000
Luminous efficacy (lm/W) :104
Luminous Flux in Lumens (lm) :2500
Sensor / Overide :No
Switching Cycles:17500

Amperage (mA) :350
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :Yes
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :No
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :20 to 40
Power Consumption (w) :24
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240
Wattage equivalent (W) :
Watts per metre :
EN :EN-60598
LVD Certified:Yes

New Energy Rating :F
IK Rating (Impact Protection) :IK10
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP66
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :45
CE RoHS :Yes

Package Length (mm) :355
Package Width (mm) :108
Package Depth (mm) :355
Package Weight (g) :1450
