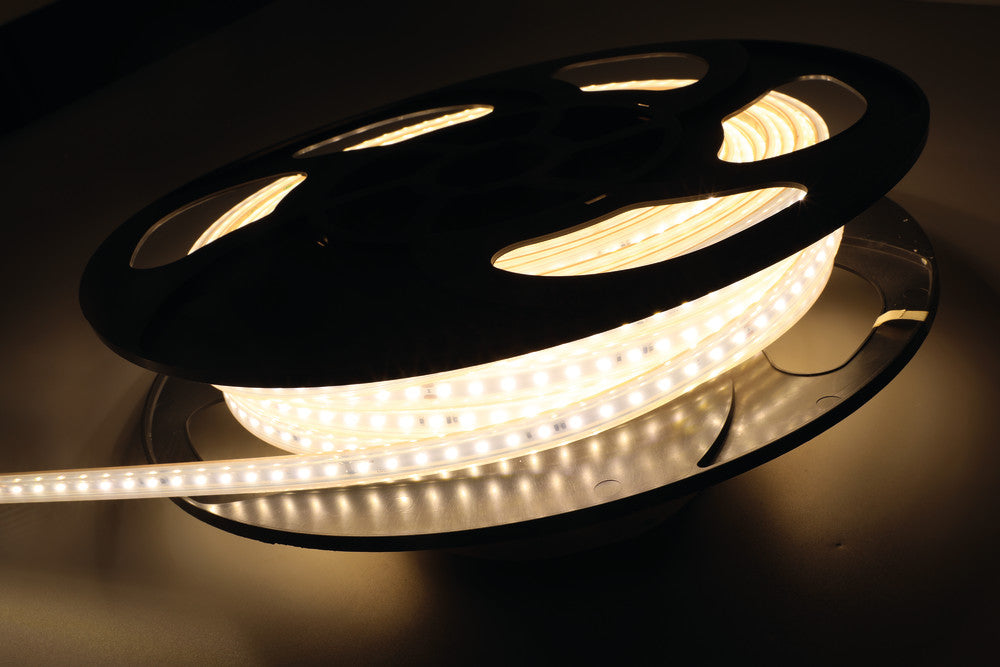

ULTRA LONG STRIP IP67 40M 4000K 48V 8W/M 1015LM/M 84LED/M 14MM WIDTH 120 BEAM BOX PACK
Integral LED produces high-quality Ultra-Long LED Strips for designs where strips of extensive length are required. They are manufactured to minimise the effects of voltage drop, give a consistent light across the strip, and reduce the number of wires and connections needed compared to shorter strips. An ideal solution for substantial hospitality, retail, domestic and commercial projects.
For extensive LED strip projects - indoor or outdoorCool White48V DC Constant Voltage8W per metreThe entire length of the LED strip can be powered with one compatible LED Driver
Barcode :5055788256595
Category :Strips
Features :Ultra Long
Market Segment :Commercial indoor, Residential indoor, Commercial outdoor, Residential outdoor
Product Body Finish :
Product Type :White strip
Range Name :Ultra Long strip
Warranty (Years) :5
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :120
Beam Angle (Range) :
Colour Rendering Index (CRI) :80
Colour Temperature :
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :
Lifetime (hours) :50000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :1015
Lumens Range :
Luminous efficacy (lm/W) :
Luminous Flux in Lumens (lm) :
Sensor / Overide :
Switching Cycles:
Amperage (mA) :
Battery Configuration :
Dimming :Dimmable with dimmable drivers and compatible dimmers
Driver Included :No
Electric Current :DC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :
Power Consumption (w) :
Power Consumption per meter (W/m) :8
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :
Wattage equivalent (W) :
Watts per metre :6.1w - 10w
EN :EN-62031
LVD Certified:Yes
New Energy Rating :E
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP67
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :45
CE RoHS :Yes
Package Length (mm) :598
Package Width (mm) :580
Package Depth (mm) :85
Package Weight (g) :
